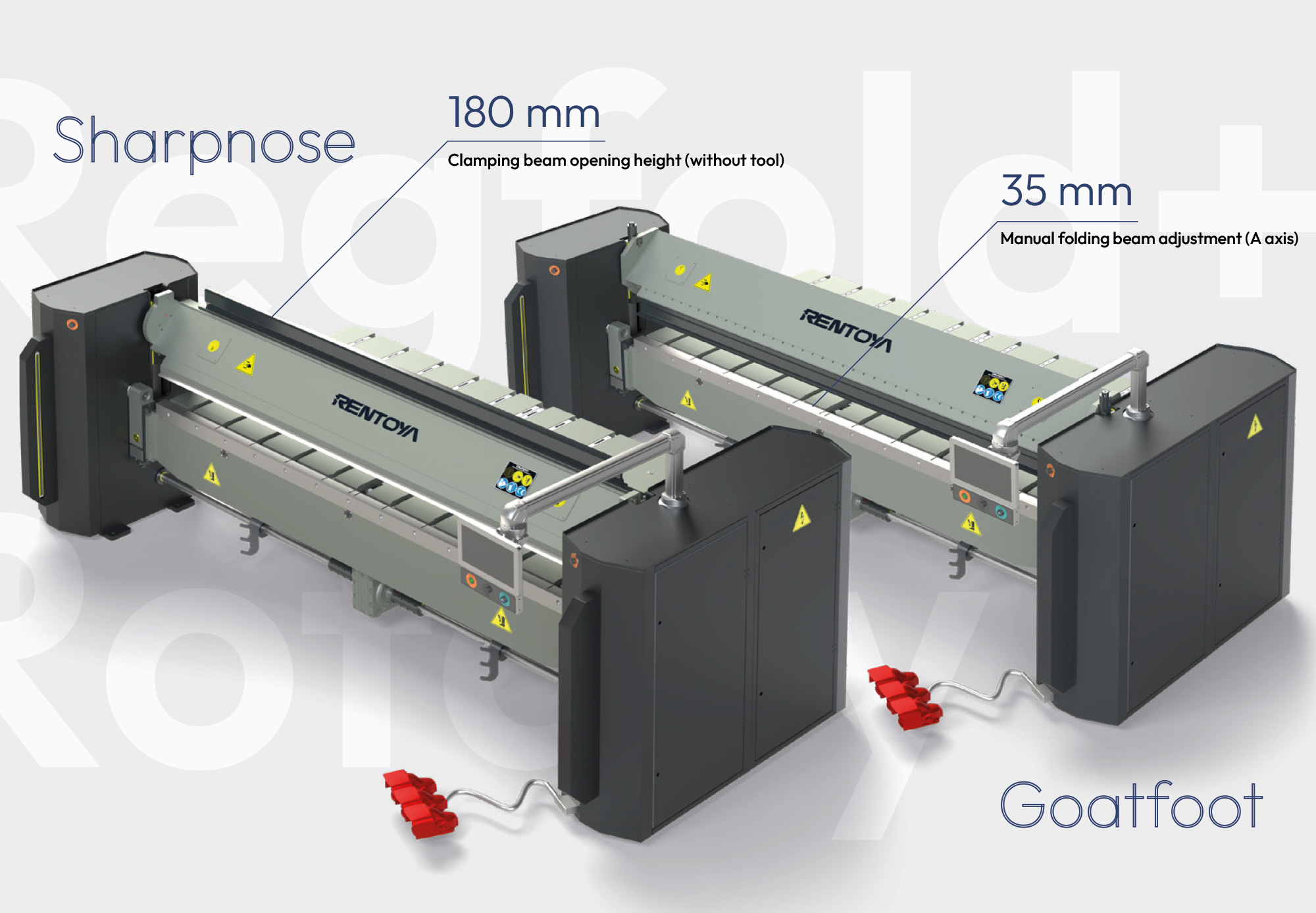

Regfold+ Rotary Series

Standard Features

• AC motorized drive of clamping, folding, upper beam rotation (Y,Z,C axis)
• Servo motorized drive of back gauge (X axis)
• COMBI CLAMPING BEAM with 2 tool stations.
• Flat rail lower beam tool and solid fingers on backgauge.
• 110 mm high goat foot tools on station 1 and 20° sharp nose clamping beam tools on station 2

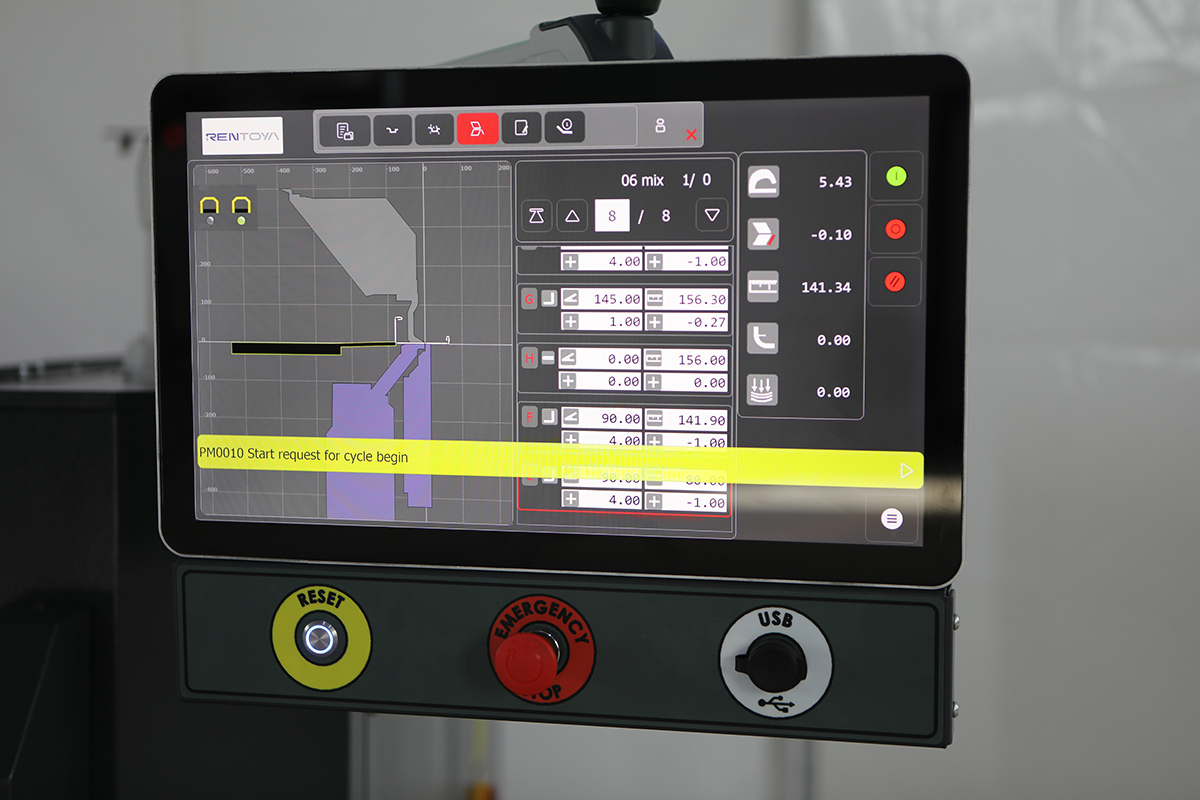

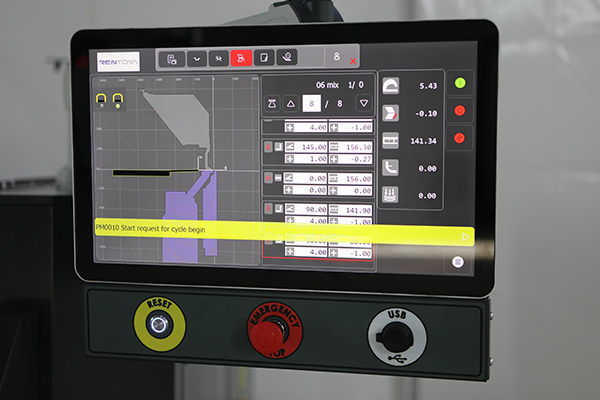

• 15,6’’ touch screen controller with CNC line by line software on fixed rotating arm.
• Folding beam tools as 7 or 10 or 15 and 25 mm (2 sets)

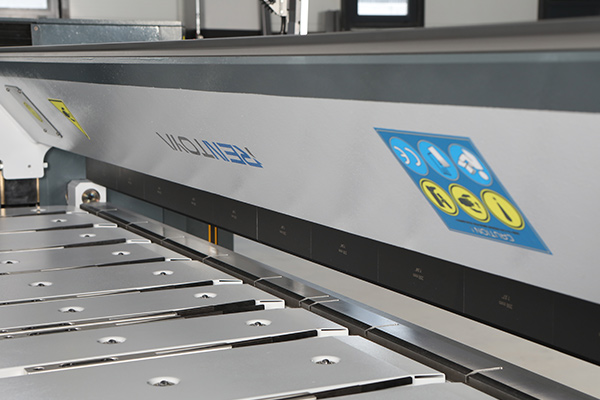

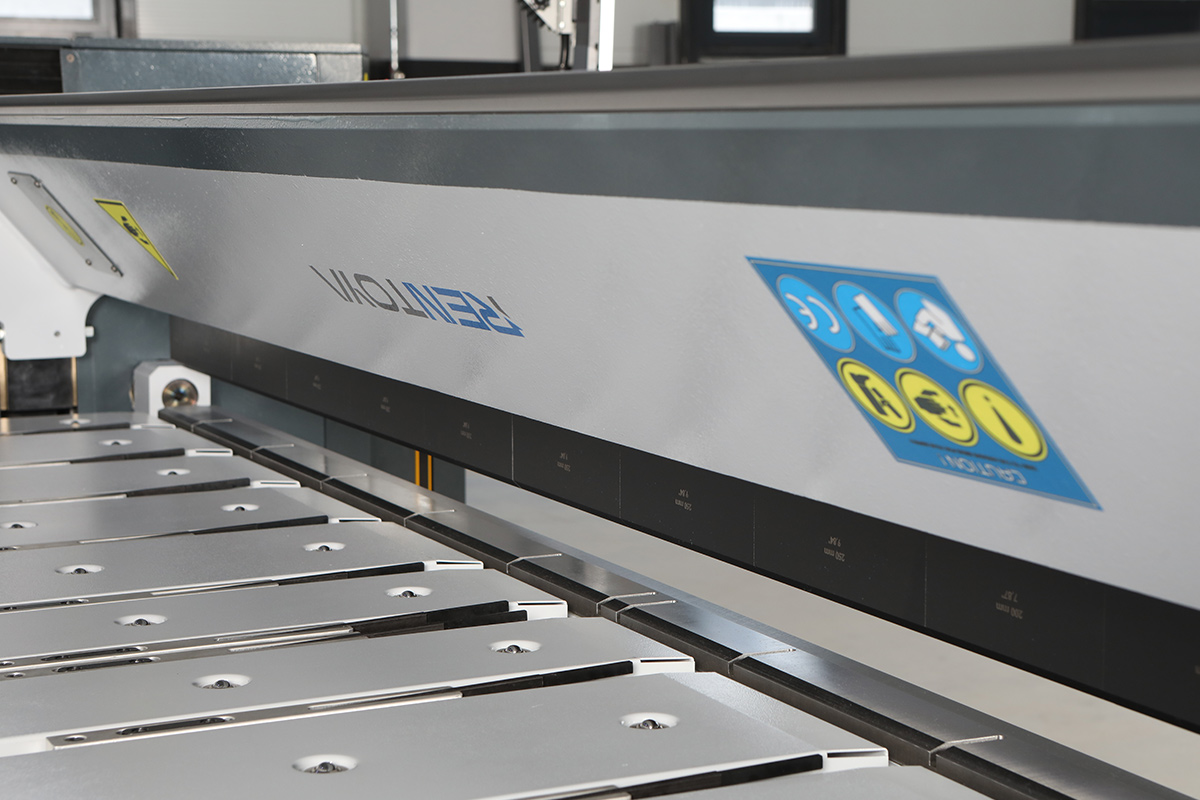

• 750 mm rectangular back gauge table with ball casters

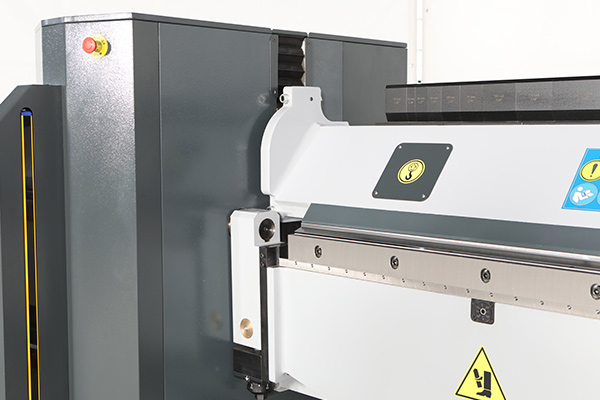

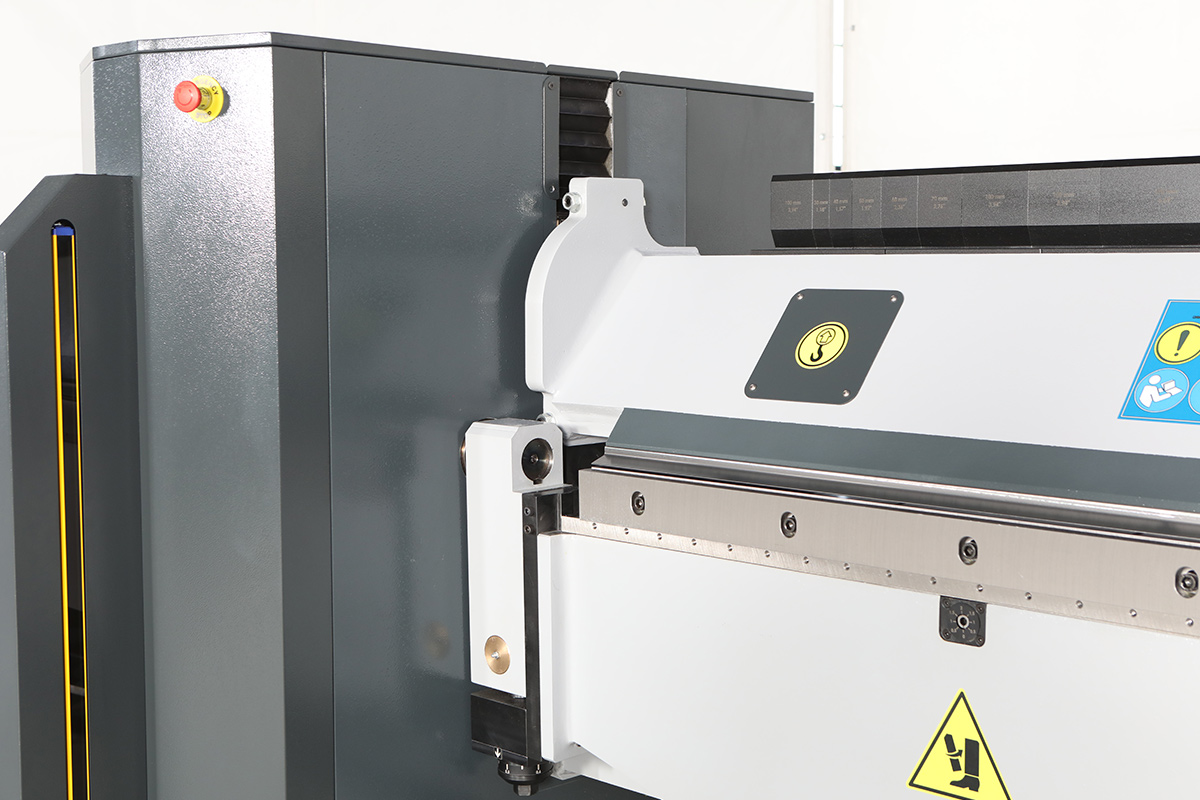

• Front light barriers
• 3 switch foot pedal

Optional Features

• 1500 mm or 1000 mm servo backgauge system with rectangular sheet support table.
• 2500 / 3200 / 4200 mm servo backgauge system upgrade with L / U shape sheet support table options.
• 2D/3D CNC Graphic Control Software.
• Servo folding beam adjustment.
• Manual crowning system.
• 90 or 110 mm high segmented goat foot tool set.
• Omega geometry upgrade on lower and folding beam.
• Manual conical backgauge finger.
• Motorized conical backgauge system.
• Pneumatic goat foot tool quick clamping system.
