Apexfold Rotary Series

Standard Features

• Servo drive of clamping and back gauge ( Z and X axis)
• AC high torque motorized drive of folding and beam rotation ( Y and C axis)

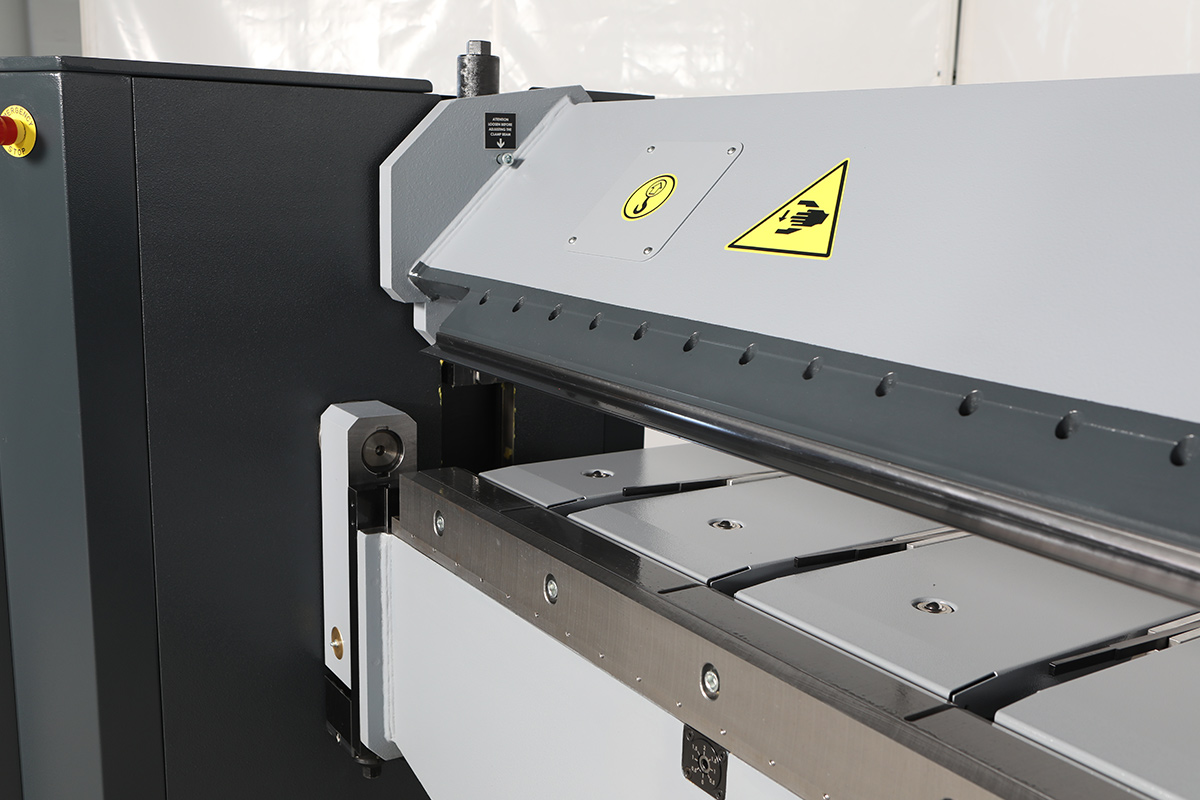

• COMBI CLAMPING BEAM with 2 tool stations
• Ballscrew spindle system with dual motor drives on clamping and folding

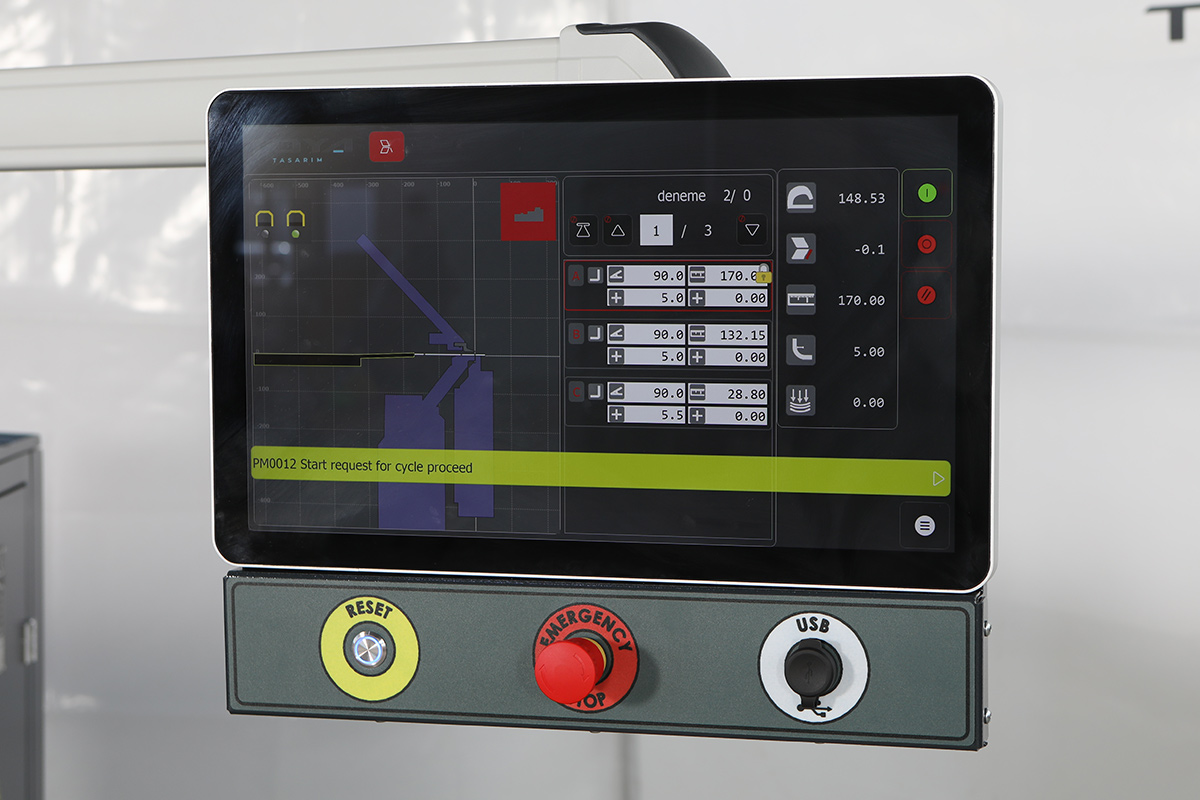

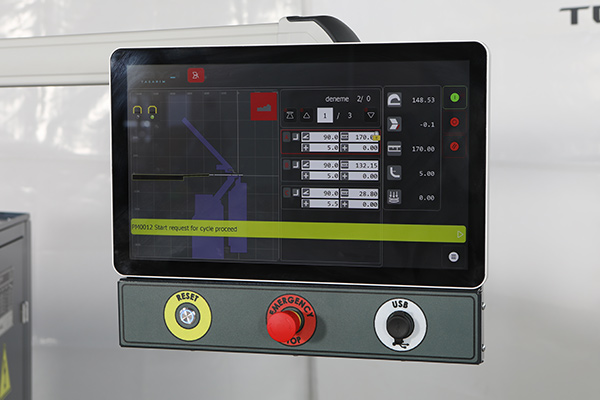

• 15.6’’ touchscreen controller on swivel arm with CNC Line by Line software
• Clamping beam opening height 250 mm (without tools)
• 125 mm high goat foot tools on station 1
• 30° - R1 sharp nose clamping beam tools on station 2
• Folding beam tools as 10 or 15 or 25 and 35 mm (2 sets)
• Manual folding beam adjustment 80 mm (A axis)

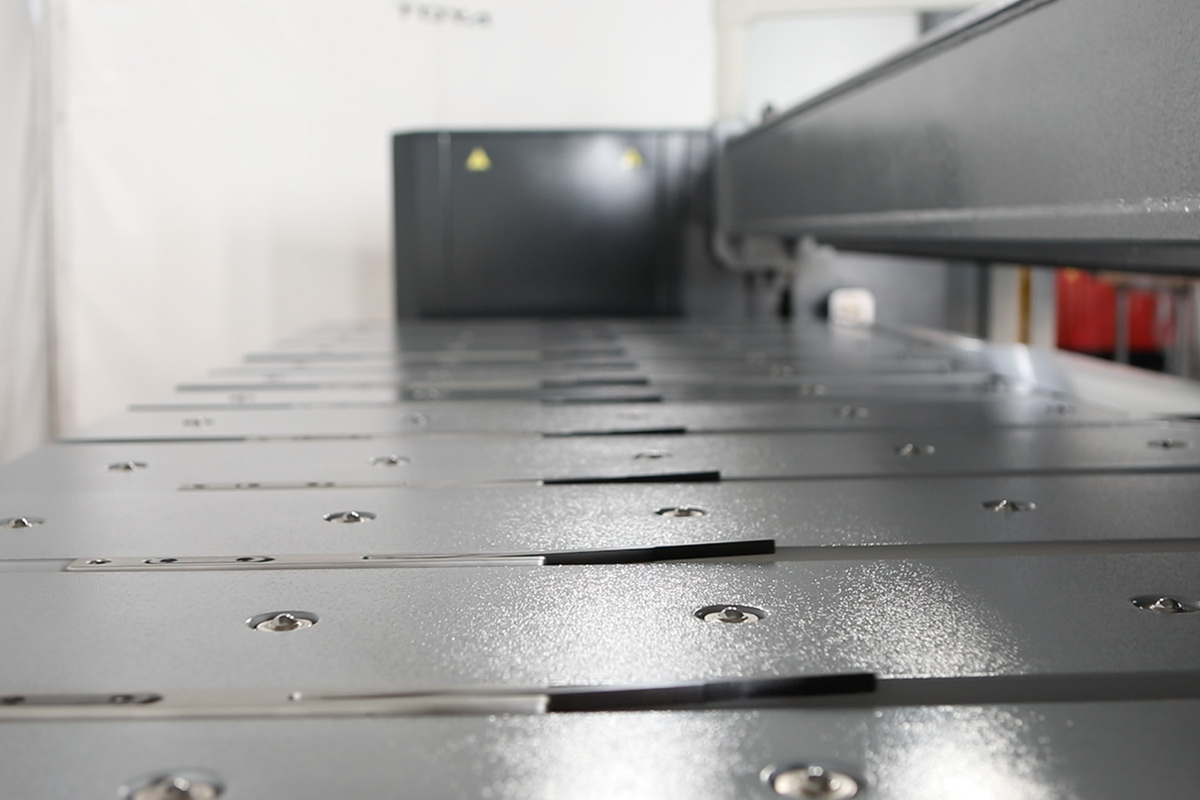

• 750 mm rectangular back gauge table with ball casters
• Front light barriers decreased)
• 3 switch foot pedal

Optional Features

• 1500 mm or 1000 mm servo backgauge system with rectangular sheet support table.
• 2500 / 3200 / 4200 mm servo backgauge system upgrade with L / U shape sheet support table options.
• 2D/3D CNC Graphic Control Software.
• Servo folding beam adjustment.
• Manual crowning system.
• Omega geometry upgrade on lower and folding beam.
• Manual conical backgauge finger.
• Motorized conical backgauge system.
• Pneumatic goat foot tool quick clamping system.
